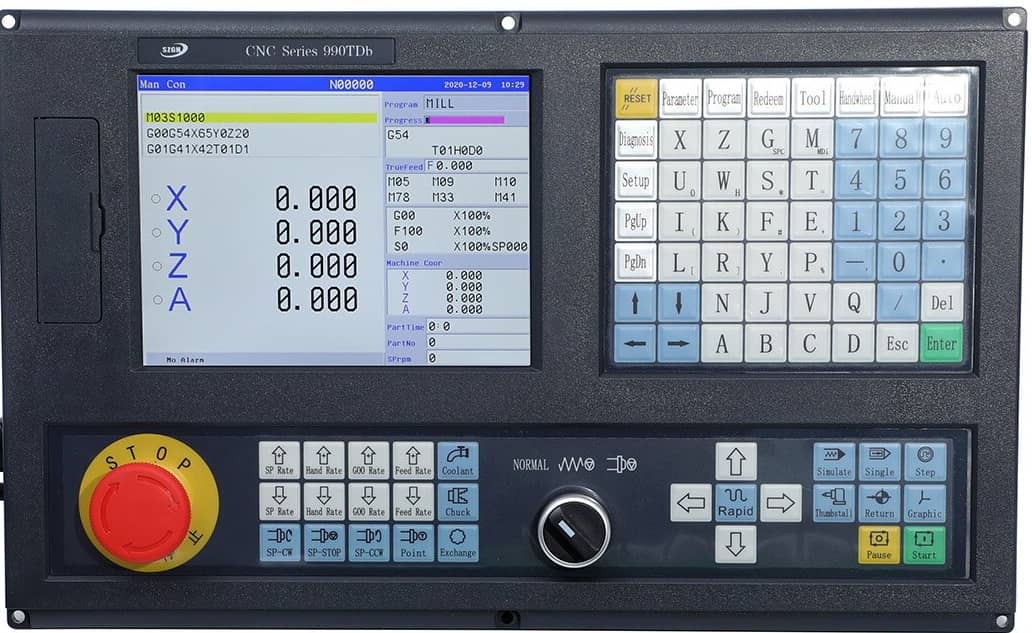

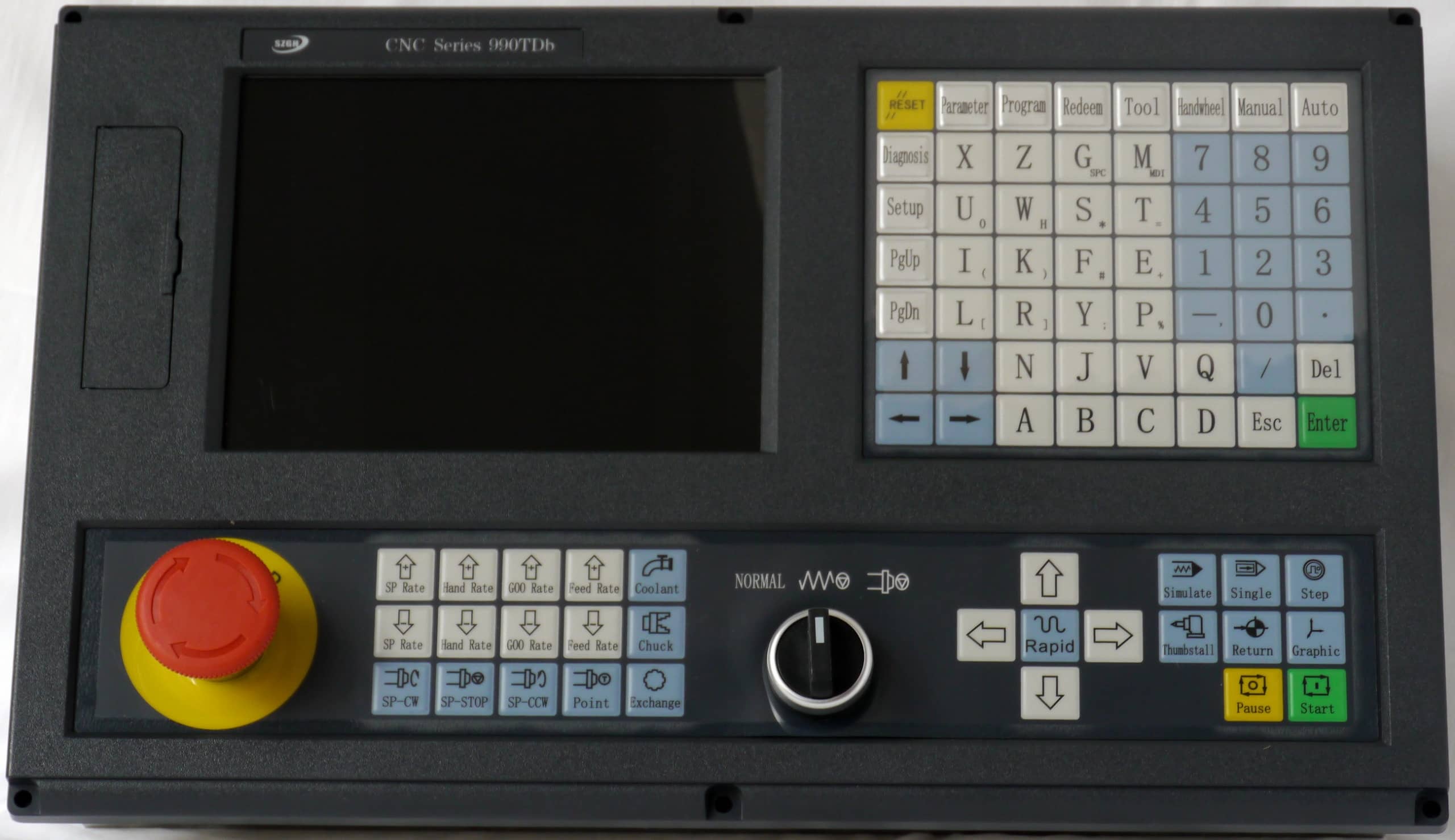

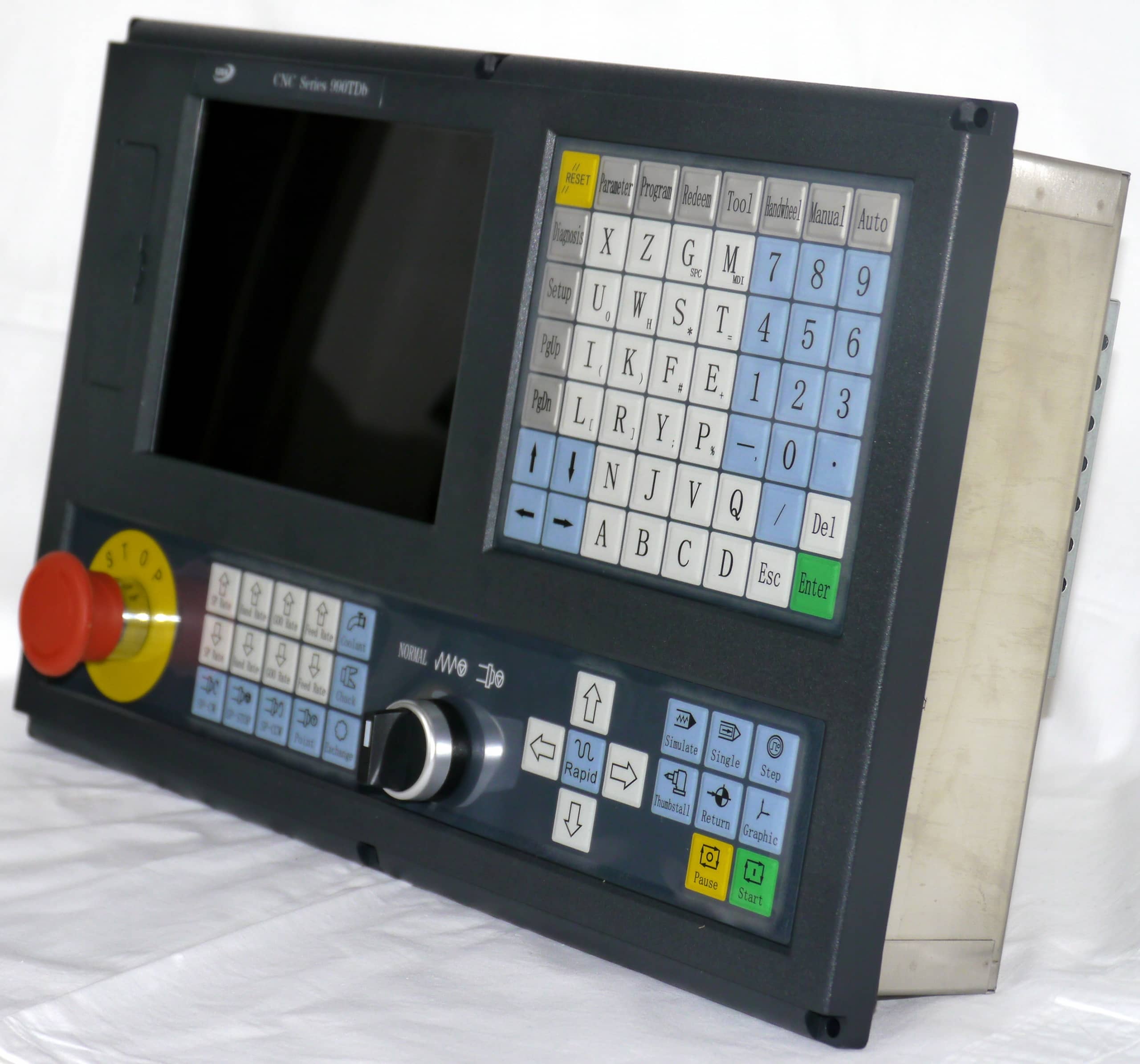

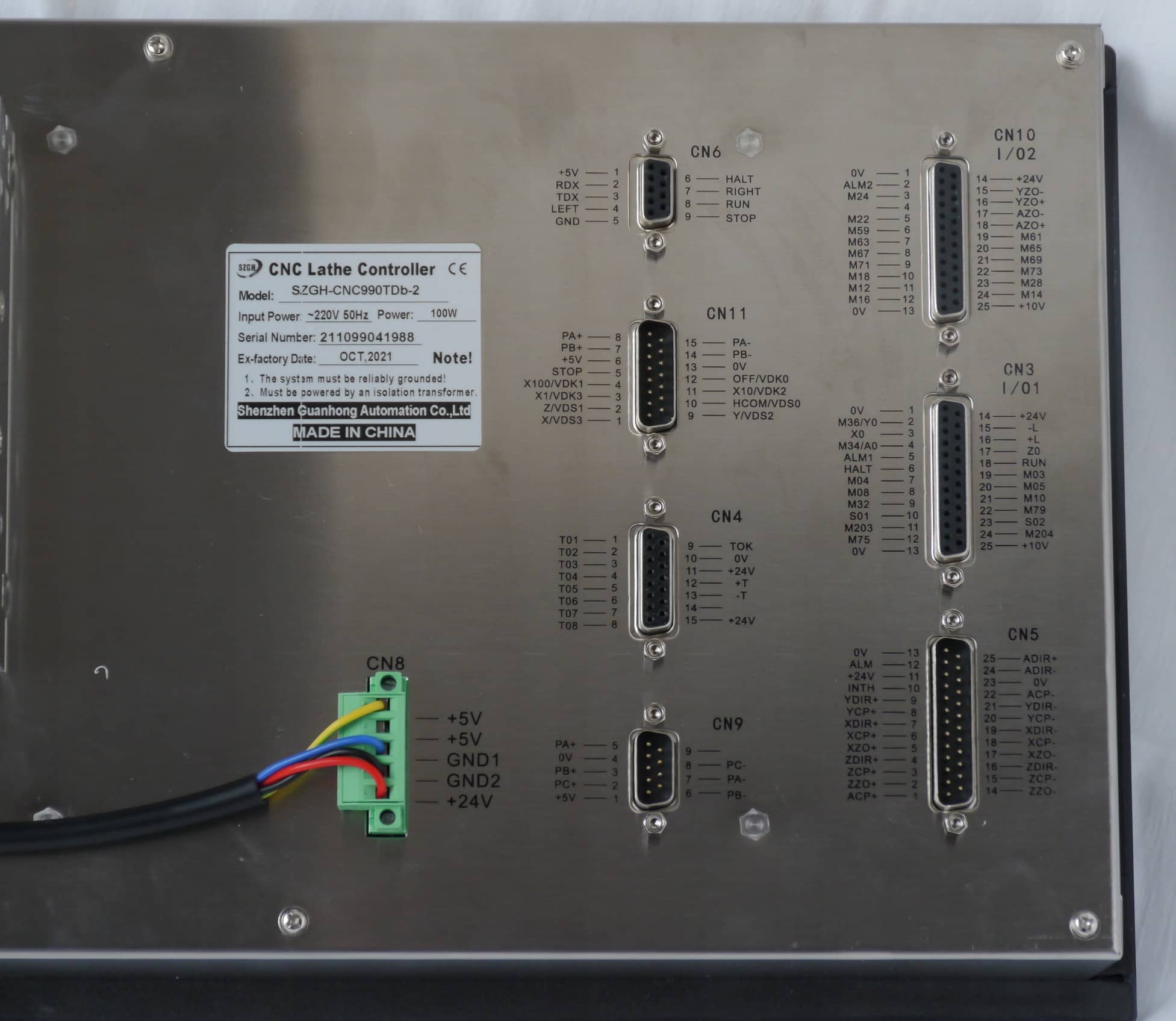

2-osiowy kontroler tokarki CNC SZGH-990TDb-2

Parametry kontrolera

• Wyświetlacz  -                    kolorowy ekran 8,4 cala (800x600)
• Port komunikacyjny   -       USB + RS232
• Support                      -       wbudowany standardowy program PLC, który można dostosować, edytować zgodnie z

• Ilość  we/wy   -      40/24

Funkcje

• Obsługa funkcji makro,
• Programowanie drabinkowe PLC
• obsługa ATC
• szybka interpolacja, 2ms
• 128MB pamięci, 100Mb użytkownika
• Częstotliwość wyjściowa impulsu 2 MHz, domyślny odpowiednik impulsu to 1um
• Analogowe wyjście napięciowe 0 ~ 10 V w dwóch kanałach, obsługuje dwa wrzeciona
• Funkcja gwintowania
• Wbudowana kompensacja  luzu
• Obsługa okna dialogowego zmiennej makro i uruchamianie programu przez punkty wejściowe
• Skanowanie powierzchni detalu

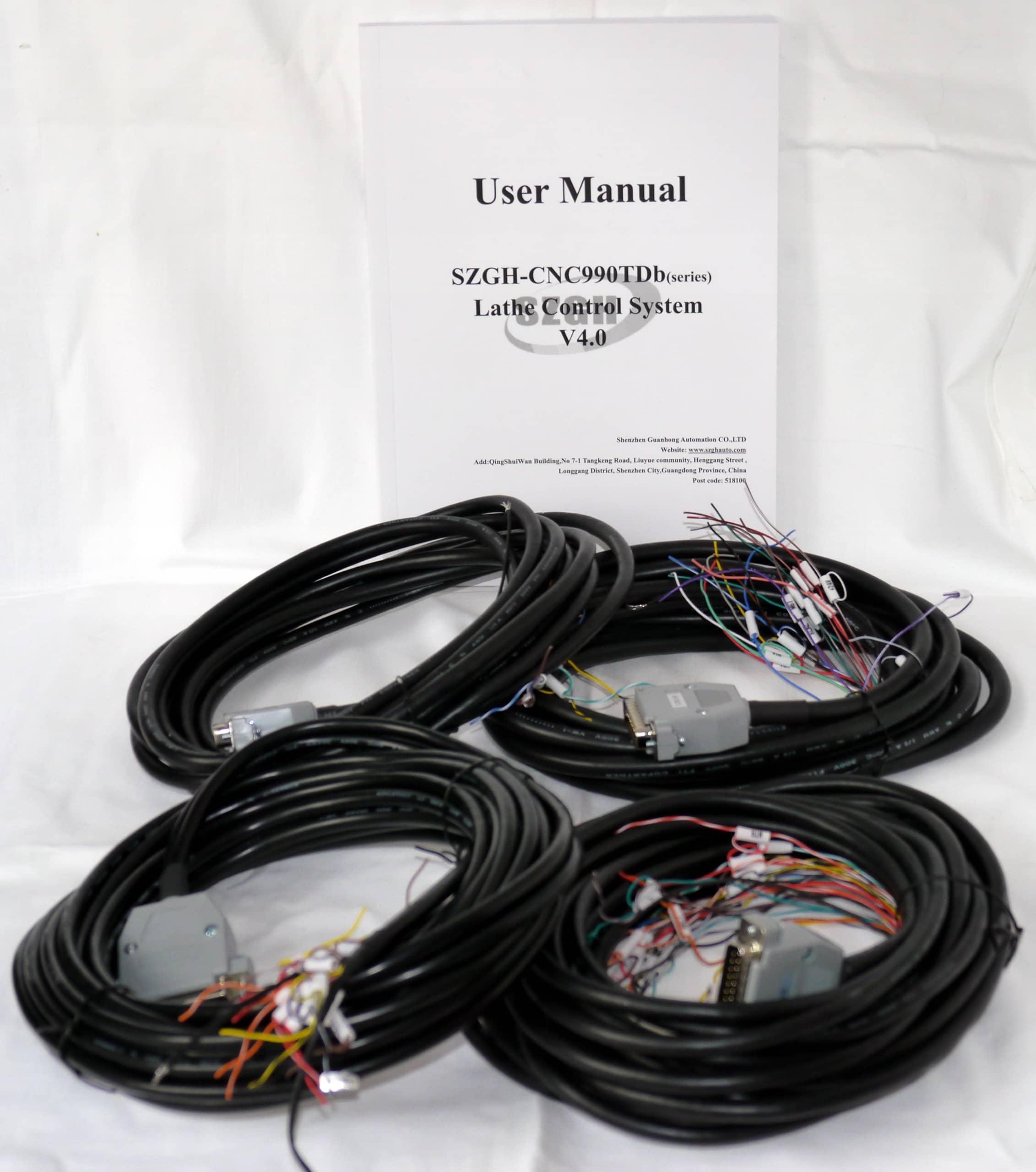

Zestaw zawiera:

• 2-osiowy kontroler SZGH-990TDb-2

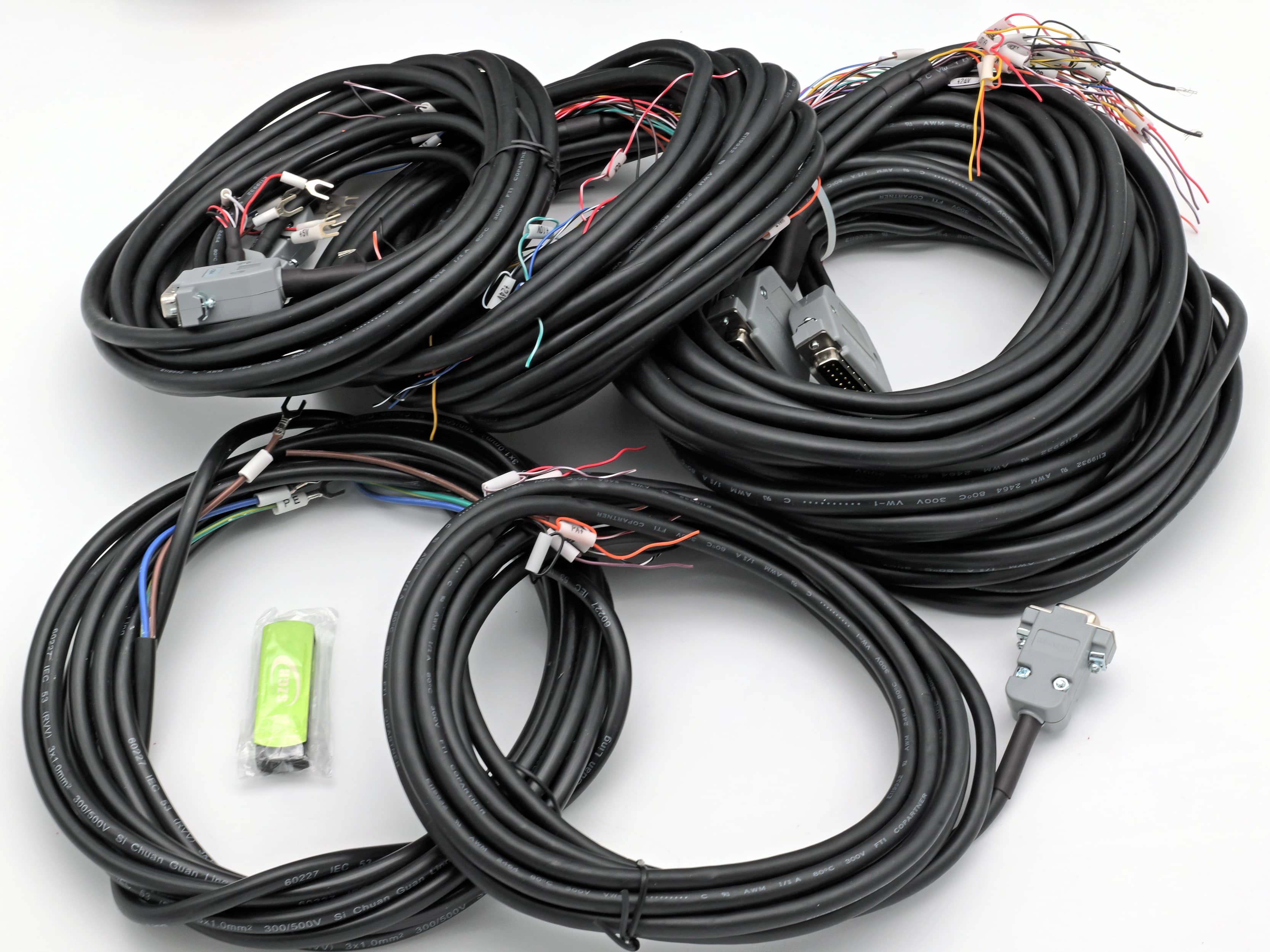

• komplet przewodów
• pendrive

Wszystkie parametry  (angielski)

1) 800*600 8.4 inch real color LCD Display

2) Support ATC function , Macro function and PLC function

3) Electric Turret & Binary code Turret & Special Turret, Max: 99 pieces of tools

4) 128MB Memory , 100Mb user store room

5) 2MHz Pulse Output Frequency, Default Pulse equivalent is 1um.

6) PLC On-line Display,Monitor & Design

7) High anti-jamming switch power(220VAC -> 24VDC & 5VDC)

8) With USB interface, for upgrade & copy programs

9) Fully English Display & keys,easy to operate

10) Analog voltage output of 0~10V in two channels, support double spindles

11) Adapted servo spindle can realize position,rigid tapping,threading of spindle

12) Basic I/Os : 40*24

13) Built-in screw compensation,Reverse backlash compensation

14) English menu, program and interface, full screen edition

15) Support macro variable dialog box & Running program by input points

Technical Specifications

• Max Number of control axes
• • Number of control axes: 4 axes (X Z Y(C) A)
• • Number of linkage axes: 4 axes
• • Number of PLC control axes: 4 axes

Feeding axes function

• • Minimum command unit: 0.001mm
• • Position command range: +/- 99999.999
• • Max speed: 240 m/min Feeding speed:0.001-30m/min
• • G00 rapid override: Total 8 levels: 0~150%,real-time adjusting
• • Feeding override: Total 16 levels: 0~150%,real-time adjusting
• • Spindle override: Total 16 levels: 5%~150%,real-time adjusting
• • Interpolation mode: Interpolation of linear ,arc ,thread and rigid tapping
• • Auto chamfering

Thread

• • Acceleration and deceleration function
• • Common thread(follow the spindle) / Rigid thread
• • Single-headed/Multi thread of straight ,taper and terminal surface in metric system/inch
• system,equal and variable pitch thread
• • Thread retract in length ,angle and speed characteristics can be set
• • Thread pitch:0.1~1000.000mm or 0.1~99 tooth/inch
• • Rapid traverse: linear type or S type
• • The starting speed,finishing speed and time of acceleration and deceleration are set by parameter

Spindle function

• • Analog voltage 0~10V output in two channels ,support two-spindle control
• • Spindle encoder feedback in one channel,resolution of spindle encoder can be set
• • Spindle speed: It is set by speed parameter,max spindle speed also corresponding to 10V
• • Spindle override: Total 16 levels: 5%~150%,real-time adjusting
• • Spindle constant surface speed control
• • Rigid tapping

Tool Function

• •Tool length compensation
• • tool nose radius compensation (C type)
• • Tool wearing compensation
• • Method of setting tools: Tool-setting in fixed position ,trial cutting tool -setting,,auto tool setting
• • Tool offset executing mode: Rewriting coordinate mode,tool traverse mode

Precision compensation

• • Backlash compensation/Pitch error compensation in memory type
• • Built-in Screw Compensation

PLC function

• • Refresh cycle: 8ms
• • PLC program can be altered on PC or on CNC , download by USB interface
• • I/Os : 40*24 I/Os
• • Support On-line display,monitor & alter ladder

Man-machine interface

• • 8.4'' large screen real-color LCD , the resolution is 480 000
• • Display in Chinese or English
• • Display in two-dimensional tool path
• • Real-time clock
• • Operation management
• • Operate mode:Auto, Manual, MDI, mechanical zero return, MPG/single step。
• • Operation authority of multiple-level management
• • Alarm record

Edit program

• • Program capacity: 128M
• • Editing function: program/block/characters research ,rewriting and deleting
• • Program format: ISO-840 code,support Macro command programming, programming of relative
• coordinate ,absolute coordinate and hybrid coordinate
• • Calling program: Support macro program ,subprogram

Community function

• • RS232: Files of part program can be transmitted
• • USB: File operation and file directly processing in flash disk,support PLC programs,flash disk of
• software upgrade.

Safety function

• • Emergency stop
• • Hardware travel limit
• • Software travel limit
• • Data restoring and recovering
• • User-defined alarm hint
